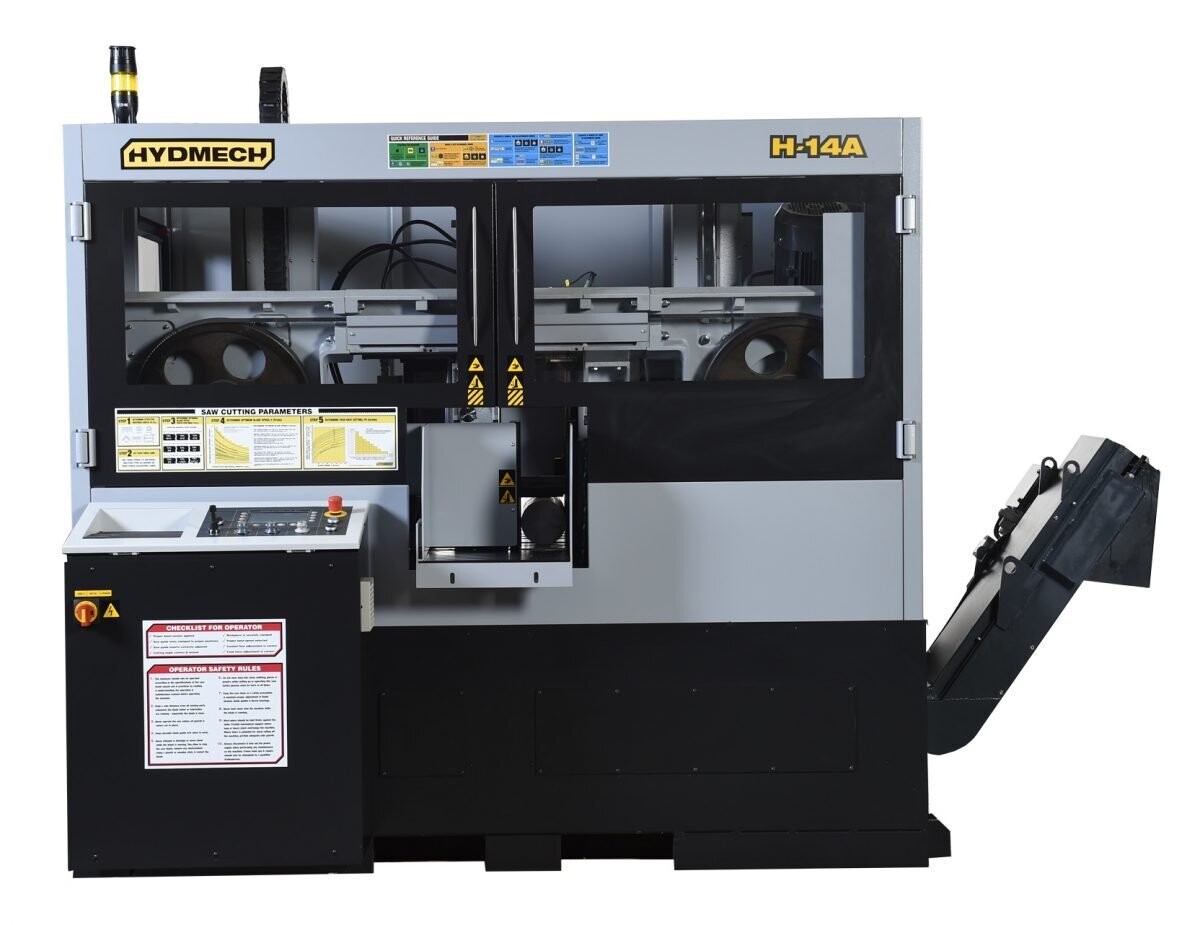

Featuring a powerful 8.8 HP variable frequency drive motor, the H-14A has a heavy-duty shuttle vise powered by a ball screw and vector motor. This provides material indexing up to 24” in a single stroke with multi-indexing capability.
STANDARD FEATURES
Heavy-duty cast iron saw head
Spilt front vise allows for short 4.7” remnant length
Cast iron shuttle features automatic multi-indexing up to 19” in a single stroke with automatic kerf compensation. Powered by ball screw and stepper motor
On-demand hydraulics save energy
Steel guide arms mounted on linear rails. Hydraulically powered idler side guide arm is adjustable for proper spacing
8.8 HP VFD. True direct blade drive – no belts/pulleys
Full capacity, full stroking hydraulic vises
Hydraulic positive down feed
Blade chamber separates material from cut part
Cast iron band wheels
Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue
