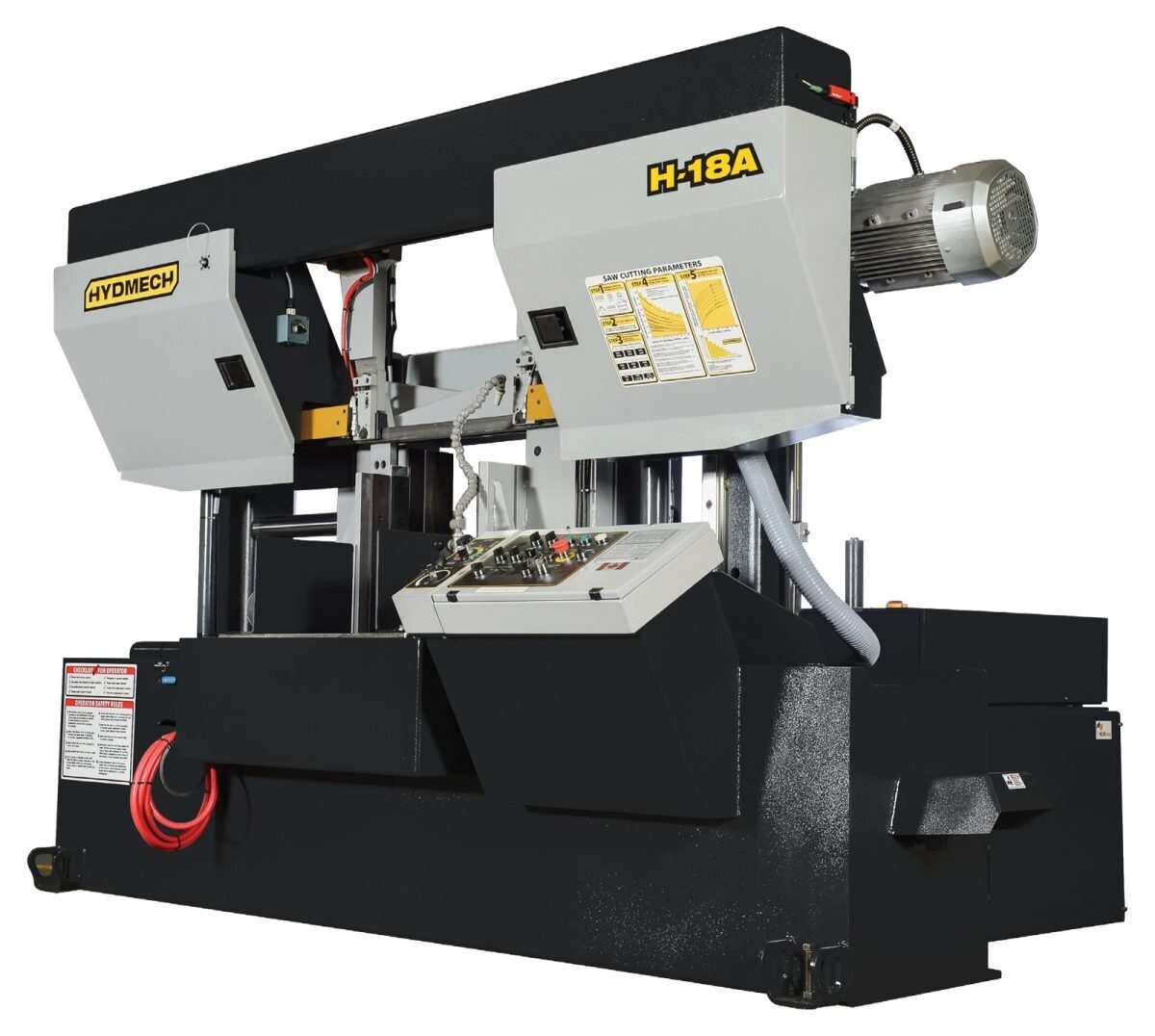

The H-18A cuts fast, with its high-speed shuttle feed indexing up to 34″ in a single movement. Its standard split front vise delivers a short material remnant length, reducing material waste.
Featuring an 18″ x 18″ capacity, 10 HP motor, and 1 1/2″ blade, the H-18A is a reliable choice for all your horizontal metal cutting applications
STANDARD FEATURES
The best cost per cut performance in its class
One piece design – no alignment necessary
Spilt front vise
Cast iron shuttle features automatic multi-indexing up to 34” in a single stroke with automatic kerf compensation
Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times
10 HP VFD. True direct blade drive – no belts/pulleys
Full capacity, full stroking hydraulic vises
Hydraulic positive down feed
High resolution feed rate valve allows for constant feed rate when cutting special alloys
Blade chamber separates material from cut part
Cast iron band wheels
Automatic PLC control programmable up to 99 jobs with 5 in queue
