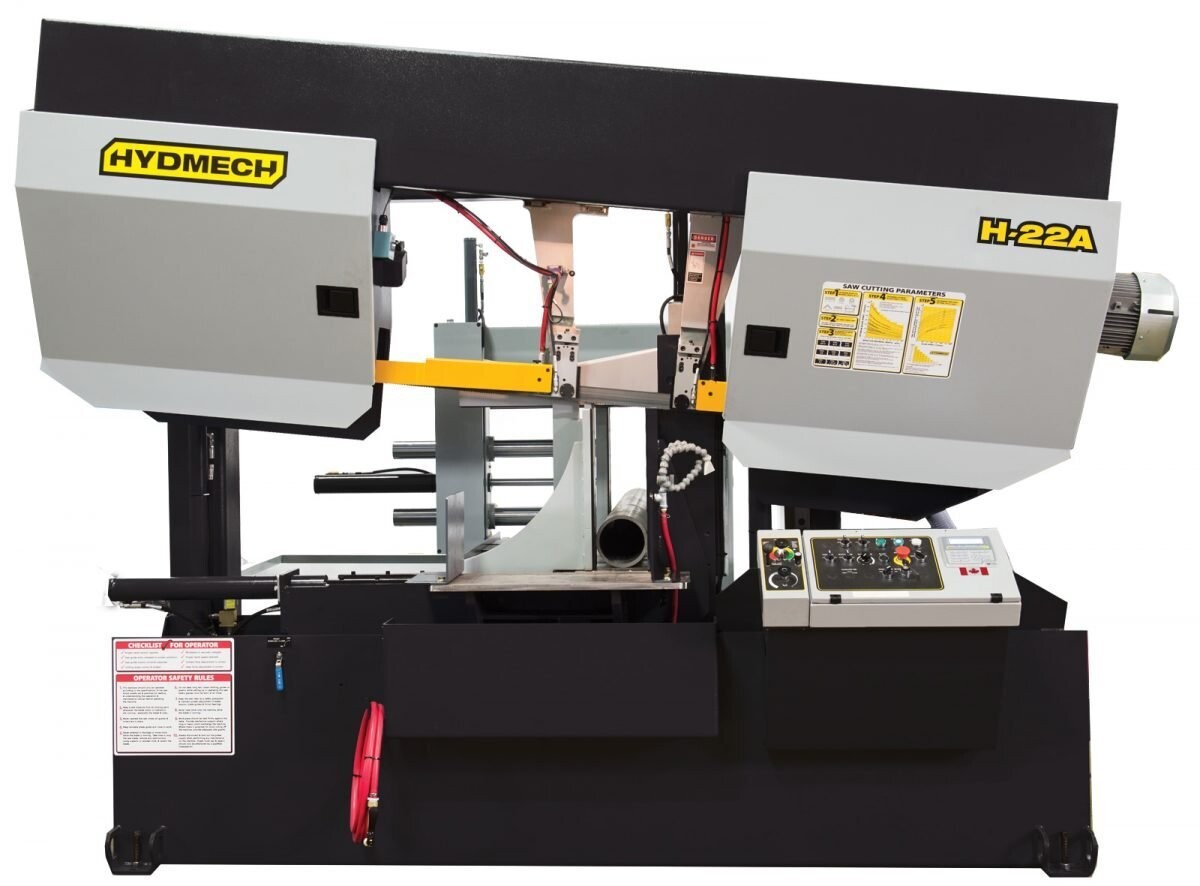

The H-22A is fast, with its high speed shuttle feed indexing up to 34″ in a single movement. Its optional 6° degree canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing allows for more efficient cutting and improved blade life.
Featuring a 22″ x 22″ capacity, 10 HP motor, and 2″ blade, the H-22A is a reliable choice for all your heavy-duty horizontal metal cutting applications.
STANDARD FEATURES
One piece design – no alignment necessary
Spilt front vise allows for short remnant length
Shuttle features automatic multi-indexing up to 34” in a single stroke with automatic kerf compensation.
Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times.
Hydraulic positive down feed
Blade chamber separates material from cut part
10 HP VFD. True direct blade drive – no belts/pulleys Full capacity, full stroking hydraulic vises
High resolution feed rate valve allows for constant feed rate when cutting special alloys
Cast iron band wheels
Automatic PLC control programmable up to 99 jobs with 5 in queue.
