Its split front vise for material clamping results in less burr on cut pieces. The machines controller can be easily programmed, storing up to 10 different cutting jobs with 5 in queue and features several different cutting modes.

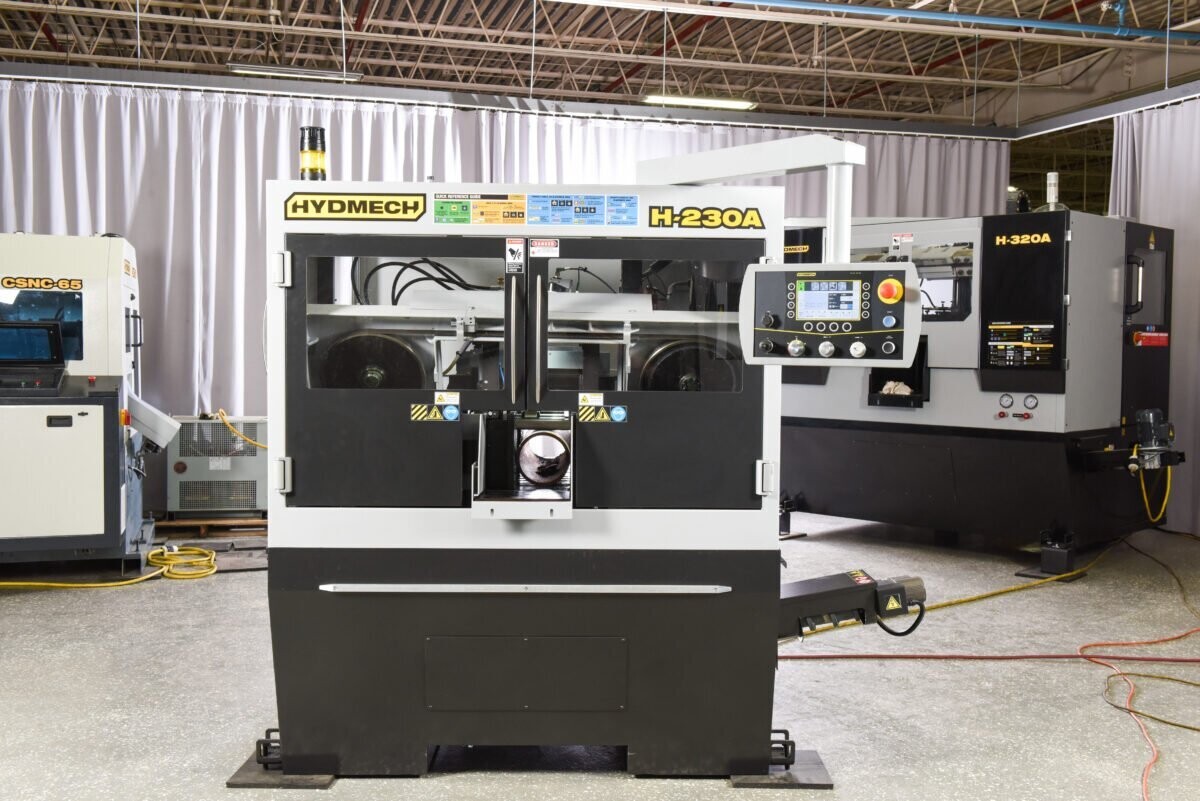

Featuring a 9″H x 9″W capacity, 3 HP motor, and 1″ blade, the H-230A is a reliable choice for your horizontal cutting applications.
STANDARD FEATURES
Heavy-duty cast iron saw head
Split front vise allows for short 2.5” remnant length
Cast iron shuttle features automatic multi-indexing up to 19” in a single stroke with automatic kerf compensation. Powered by ball screw and stepper motor.
On-demand hydraulics
Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times.
Variable vise pressure
3 HP VFD. True direct blade drive – no belts/pulleys
Full capacity, full stroking hydraulic vises
Hydraulic positive down feed
Blade chamber separates material from cut part
Cast iron band wheels
Automatic PLC, touch screen control programmable up to 20 jobs with 5 in queue
