Hydmech V-18APC-60
$0.00
In stock
Product Details

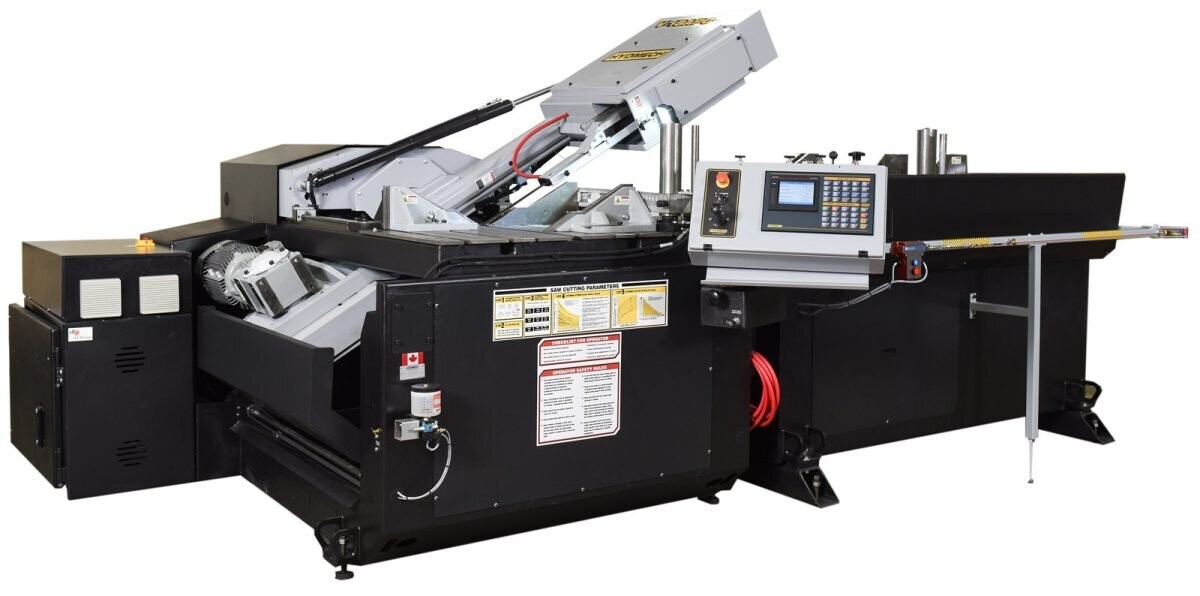

Automatic Vertical Band Saw with 60 Degree Two Way Miter.
The V-18APC-60 is a automatic vertical band saw with the ability to miter from 60° left to 60° right. You can choose a left or right side infeed. A 3 degree fixed canted head allows for more efficient cutting and improved blade life when cutting larger beams, structural steel, and bundles of square tubing.
STANDARD FEATURES
- Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right
- Four full stroking hydraulic vises (feed, main, and outboard) and squaring vise
- Automatic multi-indexing up to 40” in a single stroke
- Powered movable guide arm
- Automatic PLC control programmable up to 1000 jobs with 5 in queue
- Hydraulic overhead bundling
- 7.5 HP VFD. True direct blade drive – no belts/pulleys
- Hydraulic DDF system
- Blade chamber separates material from cut part
- Out of stock switch
- Cast iron band wheels
- Replaceable blade brush
