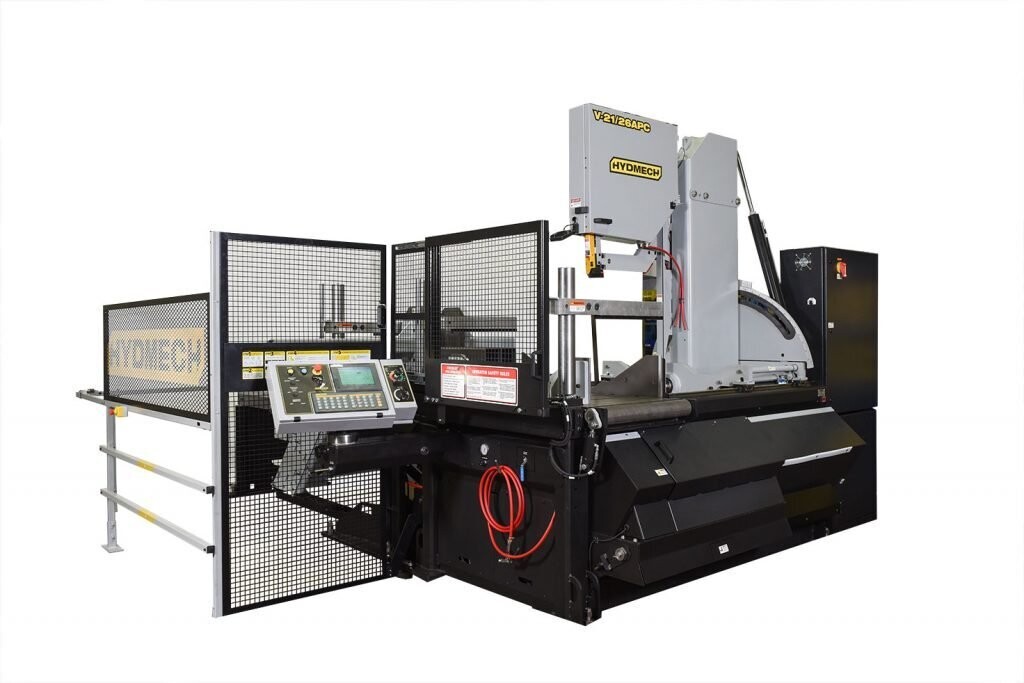

Hydmech V-21/26APC
$0.00
In stock
Product Details
Automatic vertical band saw with the ability to miter from 60° left to 60° right.
A heavy duty vertical saw, the V-21/26APC efficiently cuts both solid and structural material and is extremely versatile for many different types of sawing applications. This model features user friendly, graphical icon programming for miter cutting.
Featuring a large 26″H x 21″W capacity, 10 HP motor, and 1 1/2″ blade, the V-21/26APC is a reliable choice for all your automated vertical metal cutting applications.
STANDARD FEATURES
- 4 ° canted head allows for efficient cutting and improved blade life
- 60″ bar feed, left side
- Shuttle features automatic multi-indexing up to 60″ (120″ optional) in a single stroke with automatic kerf compensation. Powered by a rack and pinion servo drive.
- Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right
- Hydraulic head tilt
- Cast iron band wheels
- Hydraulic DDF system
- Two full stroking hydraulic vises
- Hydraulically powered, programmable guide arm attached to saw column.
- 8.5″ Mitsubishi FX5U PLC color touch screen controller. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. User Friendly Graphical Icon programing for miter cutting, 1000 jobs, 20 jobs in queue
Hydmech V-21/26APC
