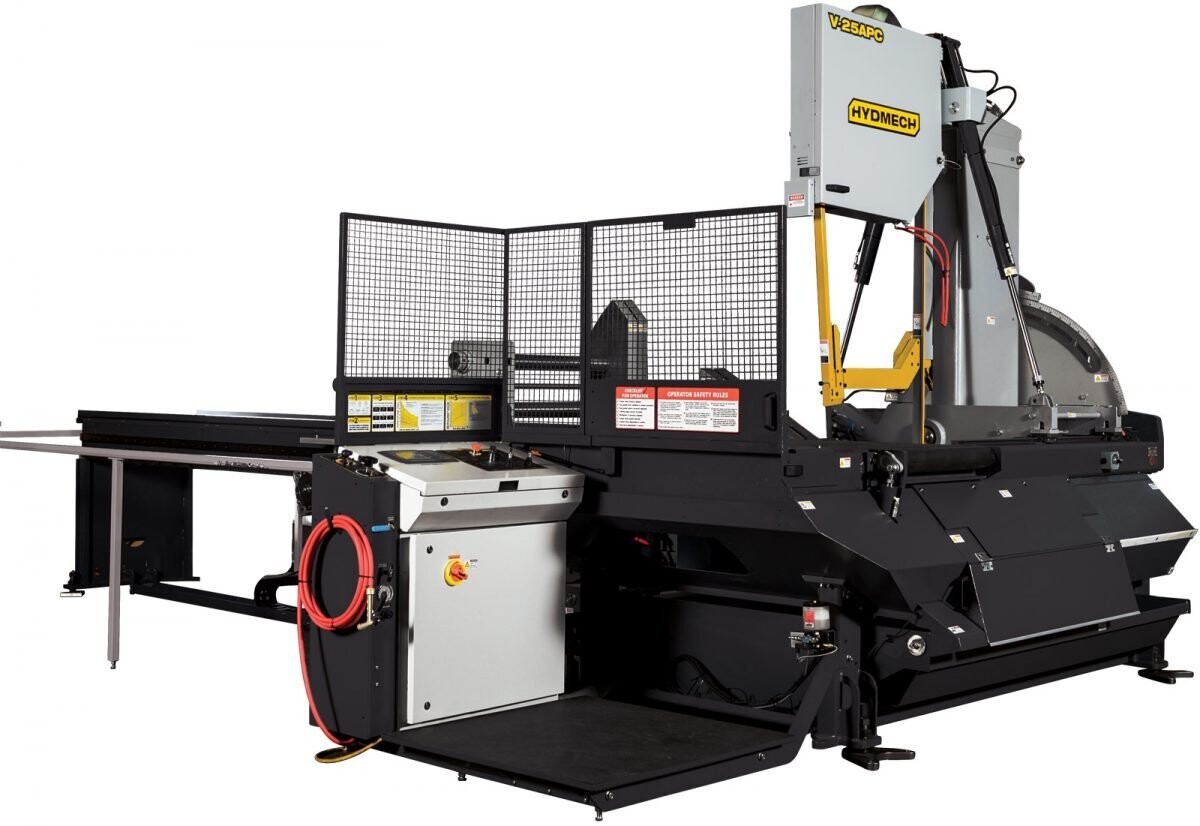

Hydmech V-25APC
$0.00
In stock
Product Details
Automatic vertical band saw with the ability to miter from 60° left to 60° right.
A heavy duty vertical saw, the V-25APC efficiently cuts both solid and structural material and is extremely versatile for many different types of sawing applications.
Featuring a large 30″H x 25″W capacity, 10 HP motor, and 1 1/2″ blade, the V-25APC is a reliable choice for all your automated vertical metal cutting applications.
STANDARD FEATURES
- 6° canted head allows for efficient cutting and improved blade life
- 60” bar feed, left side
- Shuttle features automatic multi-indexing up to 60” (120” optional) in a single stroke with automatic kerf compensation. Powered by a rack and pinion servo drive.
- Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right
- Hydraulic head tilt
- Cast iron band wheels
- Automatic PLC, touch screen control programmable up to 1000 jobs with 20 in queue.
- Two full stroking hydraulic vises
- Hydraulically powered, programmable guide arm attached
- 10 HP VFD. True direct blade drive
- Blade chamber separates material from cut part
- Hydraulic chip conveyor efficiently removes chips from saw base
