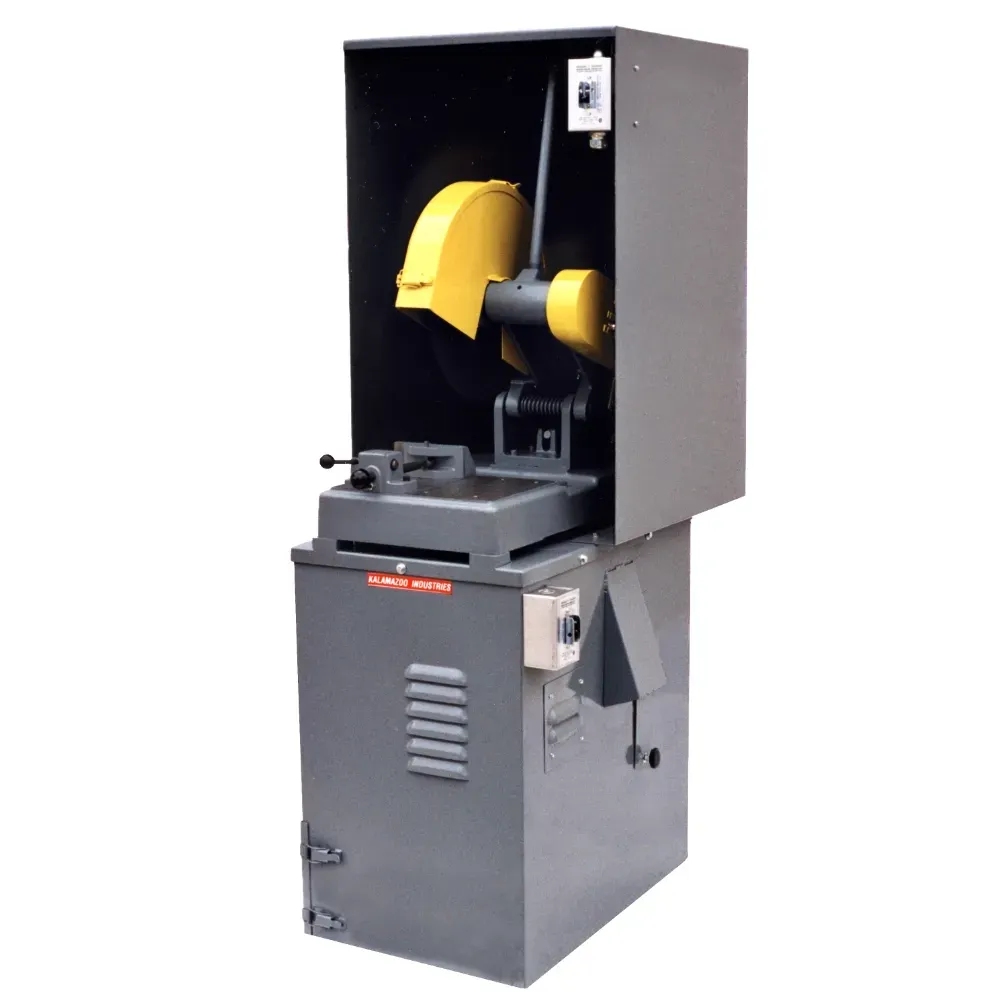

Kalamazoo Industries K12-14V 14" Abrasive Chop Saw

The Kalamazoo K12-14V is a robust 5HP abrasive chop saw, engineered to effortlessly cut through tough materials such as ferrous steel bars, flat stock, and tubing. It features an integrated vacuum system to minimize dust and debris, ensuring a cleaner workspace. This versatile 14 inch cutoff saw can accommodate both 12″ and 14″ blades and is available in various configurations, including different voltage options for the motor.

Motor Options:

• 5HP, 1 PH (220V only)
• 3 PH (230V or 440V) – specify voltage at the time of order

Dust Collection System:

• 1HP, 400 CFM steel vacuum base with metal hood
• Replaceable steel mesh filter (washable)
• Manual dust collector rotary on/off switch

Controls:

• Magnetic on/off chop saw switch
• Rotatory on/off dust collector switch

Electrical Specifications:

• Saw:
  • 3PH FLA: 230V 12 amps, 440V 6 amps
  • 1PH FLA: 19.5 amps
• Vacuum:
  • 1PH FLA: 115V 11.8 amps, 230V 5.9 amps
  • 3PH FLA: 208V 3 amps, 230V 2.8 amps, 460V 1.4 amps
• Note: Amp draws are subject to change

Cutting Capacity:

• Wheel capacity: 12″ or 14″ abrasive cutoff wheels only
• 1″ spindle arbor
• 4400 spindle RPM

Construction:

• Replaceable sealed spindle ball bearings
• Cast iron arm, base, and trunnion
• Single cam lock vise

Shipping:

• Weight: 580 lbs.
• Dimensions: L 47″ x W 37″ x H 70″
• Shipping dimensions and weight are subject to change

Country of Origin

• Made In USA
