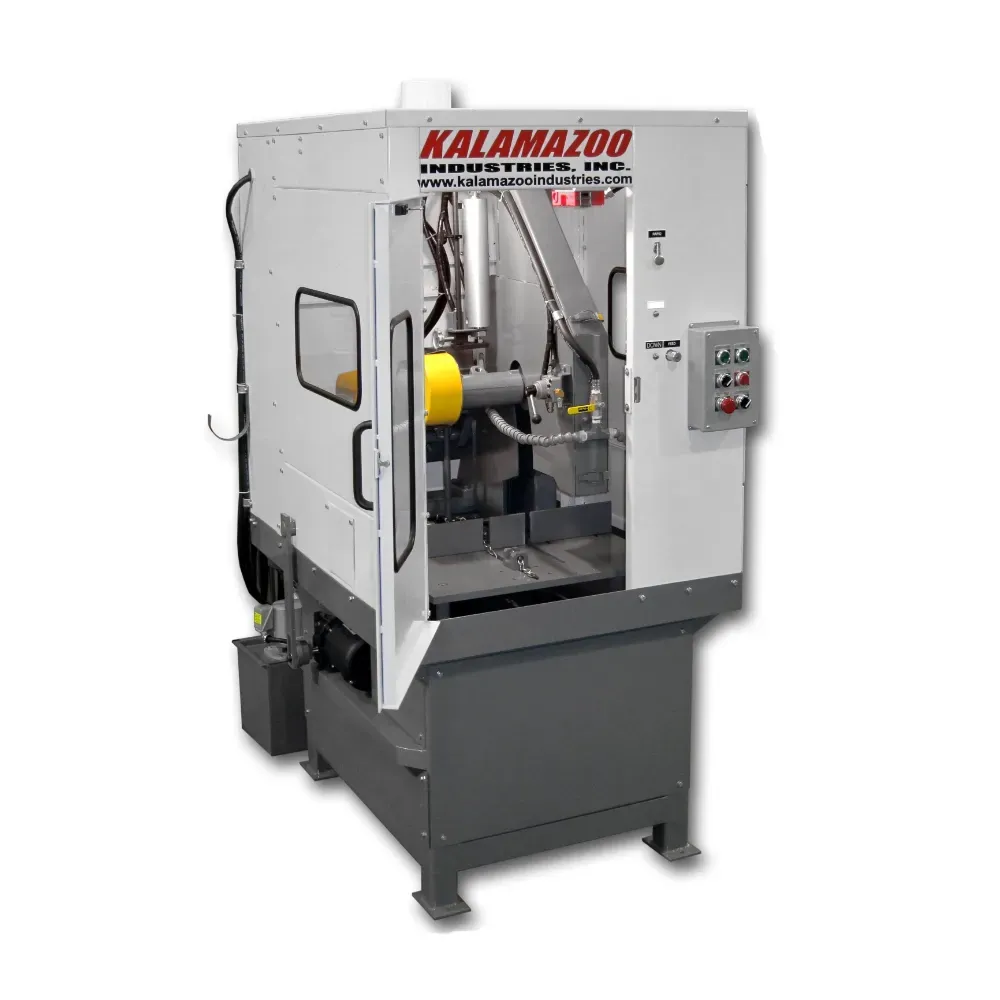

Kalamazoo industries K20E 20" Enclosed Wet Saw

The 20 Inch Enclosed Wet Inspection Saw – K20E is a versatile cutting machine designed for precision and efficiency in metallurgy labs. Equipped with a robust metal cutting wheel, this saw ensures clean and accurate cuts, making it ideal for metallurgical failure analysis. Its enclosed design enhances safety and reduces contamination, providing a reliable solution for detailed inspections and analyses in any metallurgy lab.

Motor Options:

• 15HP or 20HP 3-phase motor
• Available in 230V or 460V (specify voltage at the time of order)

Controls:

• Magnetic controls
• 24V on/off push buttons

Accessibility:

• Side access ports on infeed and outfeed sides of equipment for long stock
• Front and side access doors

Drive System:

• V-belt drive

Spindle Arbor:

• 1″ saw spindle arbor (1.25″ arbor also available)

Material Capacities:

• 4″ solid
• 6″ shapes
• Based on mild steels

Vise:

• Air chain vise

Coolant System:

• Flood coolant system
  • Industrial 1/3HP pump
  • Machine wash down hose
  • 10-gallon steel tank
  • Two flexible coolant hoses

Additional Features:

• Oscillation
• Internal light
• Manual stock feed

Feed System:

• Air/oil power down feed system (0-12 FPM feed rate) with temporary override button for quicker blade descent
• Adjustable down stop to limit the depth of cut

Equipment Dimensions & Weight:

• Machine shipping dimensions: D 50″ x W 54″ x H 89″
• Weight: K20E-15HP machine weight: 1900 lbs.
• Machine weight and dimensions are subject to change.

Origin:

• Made in the USA
