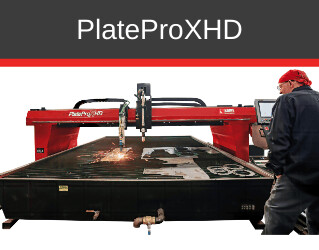

Koike PlateProX HD Plasma Cutting Machine

PlateProX HD

Koike Aronson Inc./Ransome has designed the PlateProX HD - to provide excellent thermal cutting machine at an affordable price. This automated dual side drive, plasma/oxy-fuel cutting machine is cost efficient and is manufactured in the U.S.A. There is also a two-year warranty.

The PlateProX HD utilizes the latest technologies to provide unmatched speed, accuracy, versatility and durability in a CNC cutting system. Designed to satisfy the world's most demanding customer requirements, the PlateProX HD has been engineered to maximize its' performance while costing so little. Steel Service Centers, Heavy Fabricators, Tank Manufacturers, Shipbuilders and General Fabricators are just a few of the PlateProX HD target customers.

PlateProX HD's Standard Equipment Features and Benefits

• Operator Console: Hard-wired switches for powering machine, selecting oxy-fuel station, operation and E-stop button. Swivels to the left or right for better ergonomic machine operation.
• Operator Station: with handles, for ease and comfort.
• Emergency Stop Button: E-Stop button quickly and safely shuts off machine motion and cutting process, including oxy-fuel gases to the torches.
• Limit Switches:Used for over-travel as well as homing of the machine.
• Linear Way and Helical Rack:25mm linear rails and AGMA 12 helical rack and pinion provides smooth and accurate motion.
• Floor Mounted Rails Mounted on a fixed base plate: Provides highly accurate symmetry for the basis of precision cutting and smooth motion. Allows expansion of rail length and use on a common rail for two or more machines.
• Koike Engineered Main Electrical Enclosure: Offers "off-the-shelf" components including Yaskawa drives and motors.
• Large Diameter Drive Pinions:Large diameter pinions offer accurate and smooth machine motion.
• Main Beam Construction: Solid steel fabricated construction. Includes precision machining for linear bearings and rack.
• Rail Axis Cable Carrier: Can be mounted on the floor or overhead.
• Edge Connect TC - CNC Controller
• Windows®10 Embedded
• ▪Intel J1900 Quad -core MCU or equivalent
  • ▪120GB SSD Hard Drive or better.

  • ▪4GB DDR3 or better
  • ▪19 inch Glass Touchscreen with 1366x768 Native resolution
  • ▪IntelliTouch Pro PCAP (Projected Capacitive touch technology)
  • ▪2 USB 2.0 Ports
  • ▪Built in Wireless Communication
  • ▪Two Plasma Station Operator Console
  • ▪Forward and backup on path function
  • ▪Skip to pierce or Skip part function
  • ▪Part Program Support
  • ▪Remote Help
  • ▪DXF/DWG import/Silhouette import
  • ▪Standard Grid Nesting
  • ▪On-board automatic trueshape nesting software

Plasma Systems & Options

• Optional Laser Pointer
• Koike Integrated Sensor THC Torch Height Control

• Collision Detection Mount:
• Pneumatic Dot-Peen Pin Stamp Marker Station

• Plasma Plate Marking

• Oxy-Fuel Torch Stations (Up to four stations available)

• Auto-Gas Oxy-Fuel Gas System:

• Hi-Lo Oxy-Fuel Gas System with Auto Ease-On

• Koike D7 Cutting Tips:

• Koike Torch Bevel Head Attachment
• Koike Twin Tip Holder
• Koike Zoned Downdraft Cutting Table

• Koike Water Cutting Table

• Fume Extraction Unit
