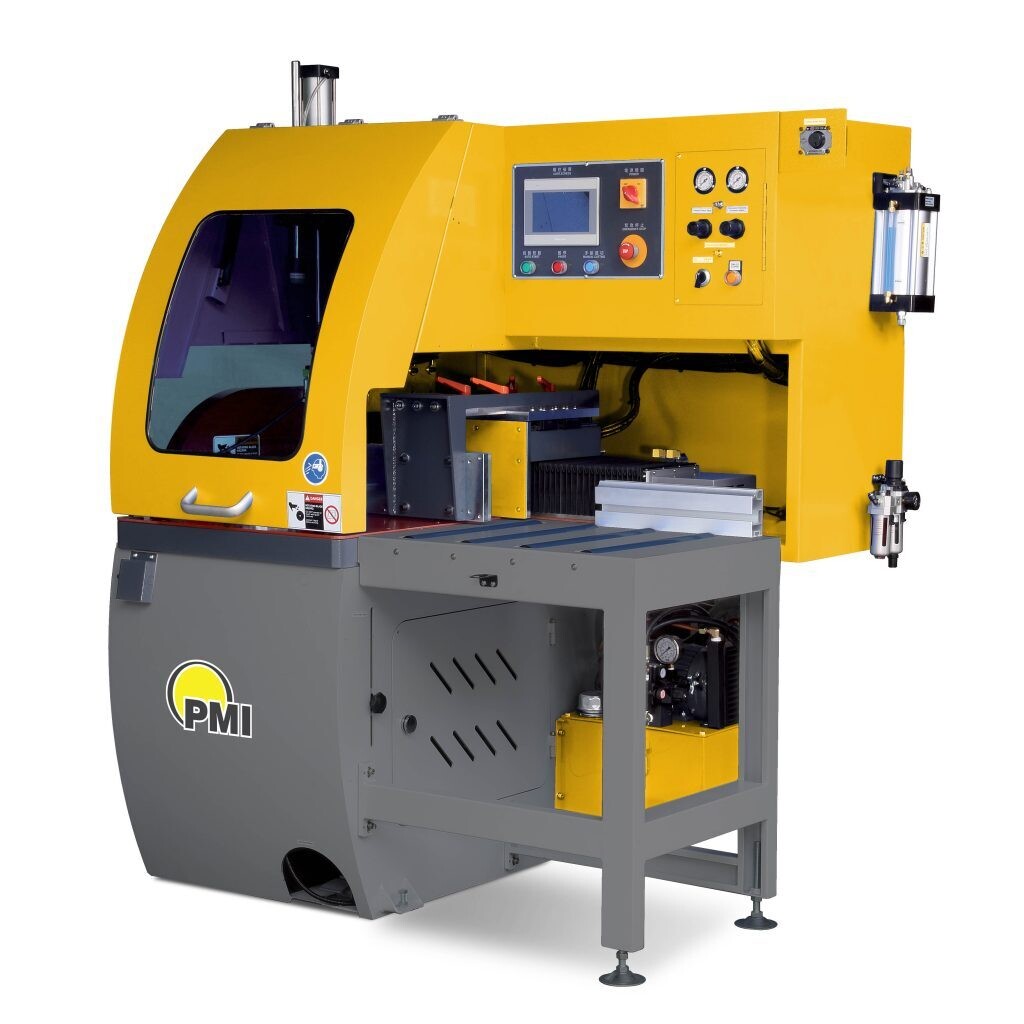

The PMI-18 DB-Type is a fully automatic upcut saw that is built and designed to cut aluminum extrusions, profiles, and other non-ferrous materials (copper, brass, plastics).
Standard Features & Equipment:
7.5 HP Saw Motor
90 Degree (Straight) Cut Saw
3200 RPM Saw Blade Speed
Full Control of the Feed Rate – Air over Oil
Touchscreen Control
Servo Controlled Material Indexing
Saw Head – Vertical and Horizontal Clamping
Adjustable Clamping Pressure
18” Diameter Saw Blade
4.33” Maximum Height Capacity
11.81” Maximum Width Capacity
230V Machine, 3hp Chip Collector & 10ft Conveyor Included
