Scotchman DO135/220-24M Dual Operator

Scotchman offers several American-made, Dual Operator Models from 70 to 150 tons of punching power. The definition of a Dual Operator Ironworker is that it allows two operators to perform two different fabricating functions simultaneously. The Tool Table Design and the wide variety of optional tools available give the Scotchman Dual Operator Machines more versatility and flexibility than any other machine on the market.

The two main features that set Scotchman’s Dual Operator Ironworkers apart from others are:

1) On all non-Scotchman dual operator models, the punch station must be used as one of the two functions. On the Scotchman, the punch can be used as one if needed, but it is not required.

2) The Scotchman dual operators are designed with a hydraulic system that has two pumps to ensure full hydraulic pressure and full speed when two functions are running at full capacity.

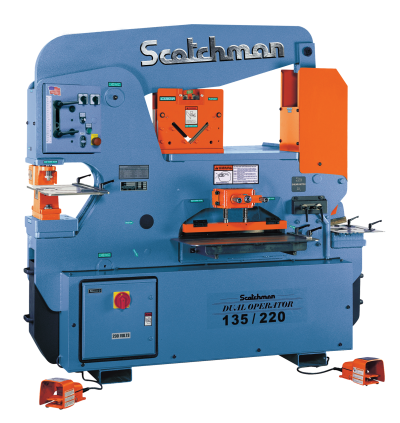

The Scotchman DO 135/220/24M dual operator has four built-in features that include a 135-ton punch (1-11/16” in 1"), a 6” x 6” x 1/2" angle shear, a 24” plate shear (1” x 12”, 1/2” x 24”) and a rectangle notcher. Combining these features with the large tool table for quick change of optional tooling plus the best in the business, 3-year parts warranty makes DO 135/220/24M an industry leader.
