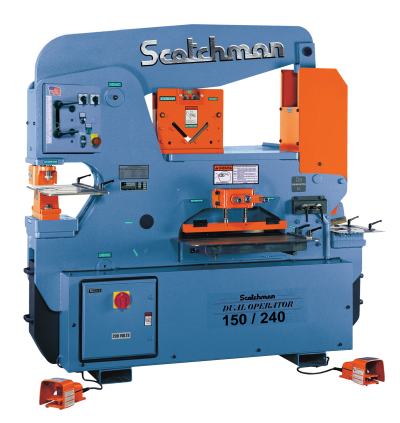

Scotchman DO150/240-24M Dual Operator

The DO 150/240/24M is the largest Dual Operator Ironworker in the Scotchman line. The definition of a Dual Operator Ironworker is that it allows two operators to perform two different fabricating functions simultaneously. The Tool Table Design and the wide variety of optional tools available give the Scotchman Dual Operator Machines more versatility and flexibility than any other machine on the market.

The two main features that set Scotchman’s Dual Operator Ironworkers apart from others are:

1) On all non-Scotchman dual operator models, the punch station must be used as one of the two functions. On the Scotchman, the punch can be used as one if needed, but it is not required.

2) The Scotchman dual operators are designed with a hydraulic system that has two pumps to ensure full hydraulic pressure and full speed when two functions are running at full capacity.

The Scotchman DO 150/240/24M dual operator ironworker is American made and has four standard built-in features that include a 150-ton punch (1-7/8” in 1"), a 6” x 6” x 1/2" angle shear, a 24” plate shear (1” x 14”, 3/4” x 24”) and a rectangle notcher. Combining these features with the large tool table for quick change of optional tooling plus Scotchman’s best in the business, 3-year parts warranty makes DO 150/240/24M an industry leader.
