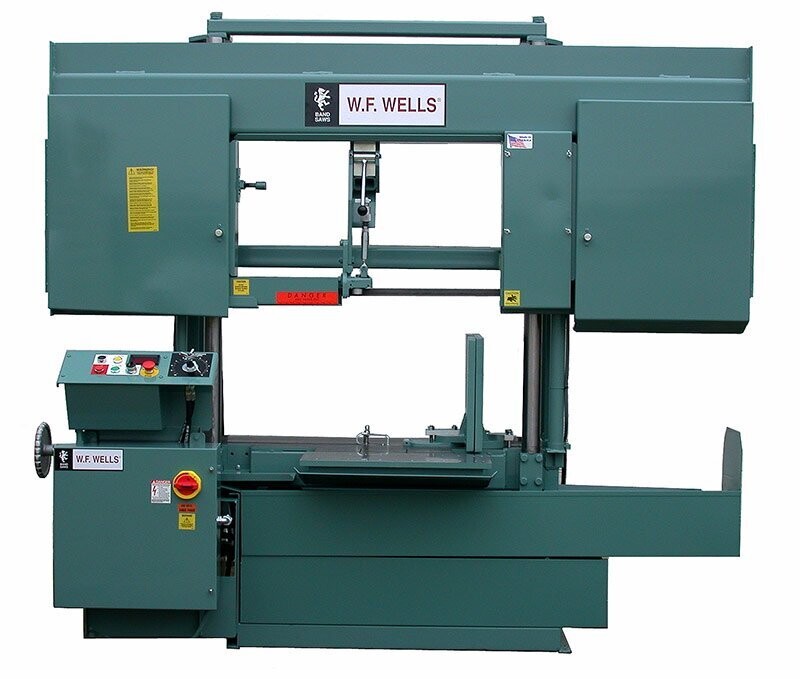

WF Wells 2024-1

Machine Specifications

• Capacity: Rectangular at 90º 20” High x 24” Wide, Round at 90º 20” Diameter
• Weight Capacity: 5,000 lbs
• Blade Speed: 60-500 SFPM
• Blade Size: 1¼” X .042” X 17′ -8″
• Blade Guide: Rollers and Carbide Side Blocks
• Blade Tension: Manual with Indicator
• Bandwheel Size: 20”
• Vise: Manual, 15”
• Blade Drive: 7½ HP, AC Vector Drive
• Sawing Force: 30-120 lbs
• Coolant Capacity: 15 Gallons
• Hydraulic Capacity: ¾ Gallon
• Hydraulic Drive: ⅓ HP Motor
• Work Height: 26”
• Shipping Weight: 2,800 lbs
• Electrics: Wired to NFPA 79 Machine Tool Standards
• Shipping Dimensions: 101”L x 40”W x 86”H

WF Wells 2024-1 Spec Sheet
