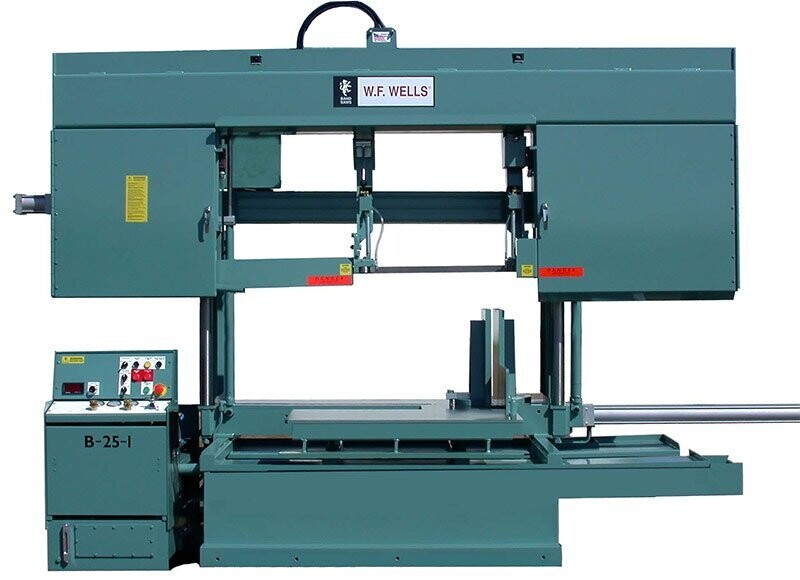

WF Wells B-25-1

Machine Specifications

• Capacity: Rectangular at 90° 25″ High X 40″ Wide, Round 25.5″ Diameter
• Rectangular at 45° 25″ High X 24″ Wide, Round at 45° 24″ Diameter
• Weight Capacity: 15,000 lbs
• Blade Speed: 60-500 SFPM
• Blade Size: 1¼” X .042″ X 22′-6″
• Blade Guide: Carbide Blocks with Roller Backup
• Blade Tension: Hydraulic
• Bandwheel Size: 26″
• Vise: Hydraulic
• Blade Drive: 7½ HP, AC Vector Drive
• Sawing Force: 0-750 lbs
• Coolant Capacity: 15 Gallons
• Hydraulic Capacity: 20 Gallons
• Hydraulic Drive: 2 HP Motor
• Work Height: 28″
• Outfeed Table: 24’ X 40”
• Blade Tension Indicator
• Electronic Door Interlocks
• Shipping Weight: 5,800 lbs
• Electrics: Wired to NFPA 79 Machine Tool Standards
• Machine Dimensions: 161″ Length x 52″ Width x 100″ Height

WF Wells B-25-1 Spec Sheet
