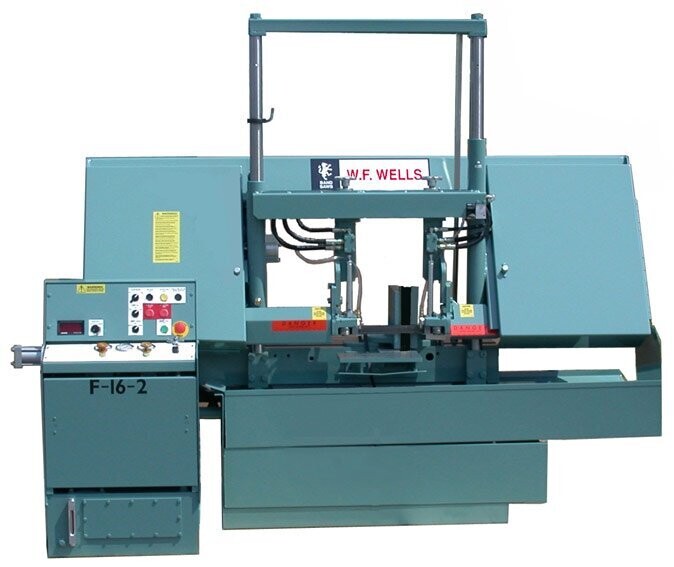

WF Wells F-16-2

Machine Specifications

• Capacity: Rectangular at 90° 16″ High x 20″ Wide, Round at 90° 16″ Diameter
  Rectangular at 45° 16″ High X 9″ Wide, Round at 45° 9″ Diameter
• Weight Capacity: 5,000 lbs
• Blade Speed: 60-425 SFPM
• Blade Size: 1¼” X .042″ X 15′
• Blade Guide: Rollers and Carbide Side Blocks
• Blade Tension: Hydraulic
• Bandwheel Size: 20″
• Vise: Full Stroke Hydraulic, 8-1/2”
• Blade Drive: 7½ HP, AC Vector Drive
• Sawing Force:0-750 lbs
• Coolant Capacity:15 Gallons
• Hydraulic Capacity: 20 Gallons
• Hydraulic Drive: 2 HP Motor
• Work Height: 26″
• Shipping Weight: 2,450 lbs
• Electrics: Wired to NFPA 79 Machine Tool Standards
• Machine Dimensions: 97″ Length x 49″ Width x 83″ Height

WF Wells F-16-2 Spec Sheet
